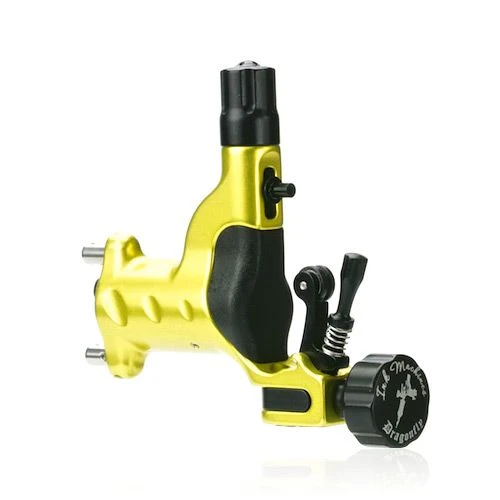

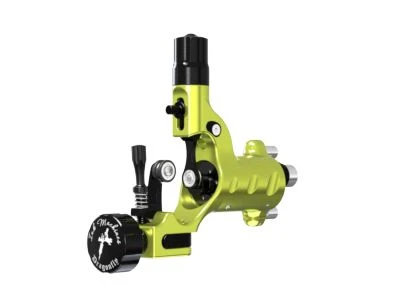

Dragonfly X2 In Crazy Lime

We are proud to present the evolution of the Dragonfly machine. The X2 model is the sum of all Inkmachines experience from building machines during the years and has led to several improvements.

1. New Swiss X2 motor. Exclusive for the X2 models. Hi-performance motor with 6W mechanical output. High energy efficiency (86%). Optimal for wirelessbattery operation with the RPS-600 power supply. Runs all type of standard needles and cartridge needles*.

2. Adjustable stroke lengths. Choose between three stroke lengths. 2.6mm, 3.7mm and 4.5mm with the same eccenter. Loosen one screw and twist the eccenter pin for the desired stroke length.

3. Easy to convert between standard and cartridge needles. When using cartridges the Stay up spring must be removed to prevent strain on the motor and to function properly. The X2 version has a lid in the frame that allows quick access to the Stay up spring. Easy to remove and insert when choosing between standard needles and cartridge needles.

4. More stable give adjustment. New Cap with built in damper prevents clatter and excessive noise when using the softer give settings. Allows you to use the whole 3 turns adjustment efficiently and without clatter.

5. Higher precision and finish. The X2 models have several improvements regarding component materials and precision

Core Benefits:

• Lightweight at only 80 grams
• Silent and Low vibrating operation
• Ergonomic design
• Adjustable suspension system that allows the needle hitting force to be adjusted
• Adjustable Stroke Length
• Needle bar stabilizer so no need for rubber bands
• Accepts standard grips, tubes and needles
• Compatible with cartridge grips
• Works with both clipcord & RCA connections
• Works with most 0-13v power supplies
• Very Durable Normally stops in upper position
• No moving components in contact with plastic barriers
• Wireless Ready to work with Inkmachines Wireless RPS-600 power supply and batteries
• Ideal for shading

Specifications:

• Input Voltage: 0 – 13 volt DC (max. 13 volt DC)
• Power connections: RCA or clipcord (max. clipcord end diam Ø1,6 mm)
• Rpm range: 0-8000 rpm Stitches per second: 0-130 / sec
• Stroke Length: 2.6, 3.7 and 4.5 mm
• Adjustable Suspension Stroke: 0-2mm Max.
• Tube Diameter: Ø8mm Max.
• Needle Size: 50 Magnum
• Weight: 80 Grams
• Wireless ready: Yes
• Dimensions: 90 x 21 x 77mm (LxDxH)



The Dragonfly tattoo machine is available in distinctive colours including Crazy Lime, Seductive Pink, Demonic Blue, Evil Black & Devilish Red and comes with an Oil and allen key kit included.
