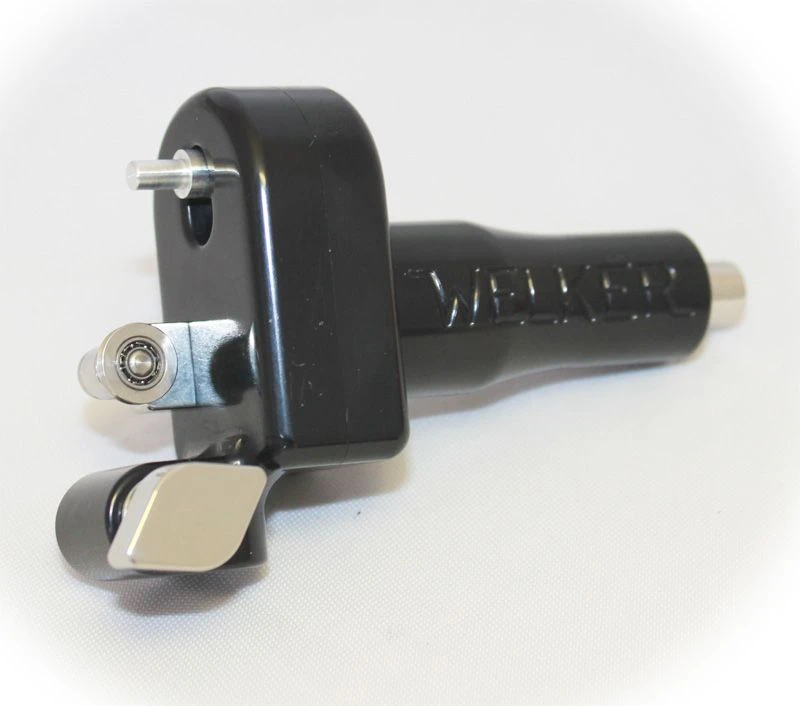

Eternal Welker Rotary Machine 3.2mm Black

The Eternal Welker 3.2mm Rotary is a precision crafted rotary tattoo machine. The machine is made from aircraft grade 6061 aluminimumm and 304 stainless steel, with absolutely no plastic parts. The bearings are made from 440 stainless steel.

The Welker 3.2mm is powered by top of the line German made Faulhaber DC micro-motor with 2.6 Watt of output power and 9900 rpm of no-load speed @12volts. Machine will run approximately at 125cps @12 volts and drop approximately 14 cps per 1 volt reduction in power fully loaded up with needles working the canvas.

Needle retention devise locks to the left and right to facilitate needle loading. The amount of pre-bend given to the needle determines tension. The retention system can be used in the loaded (tension) position when using a t-tech type of adaptor for exchangeable needle tips as the guide wheel of the retention system guides the needle down the centre of the tube.

We encourage these machines to be run at speeds equal to coil liner and shader machines. Optimal range of operation  is between 9.5 volts and 10.5 volts for shading and 10.5volts to 12 volts for lining.

We’ve found that artists tend to start at lower voltages due to previous experiences with rotary machines. Once they start to become aqainted with this type of machine they naturally start moving toward normal operating speeds that coil machines are tuned for.

• RCA power connection (clip cord connection not advised and will void warranty if an attachment is used).
• Crankshaft driven forward and rearward slides.
• Comes in 3.2mm (.125”)
• Comes in Black
• Weighs 120g ( 4.25oz)
• Produced in house at Welker machines a division of Eternal Ink Inc.
• Technical Patent Pending drive system.
